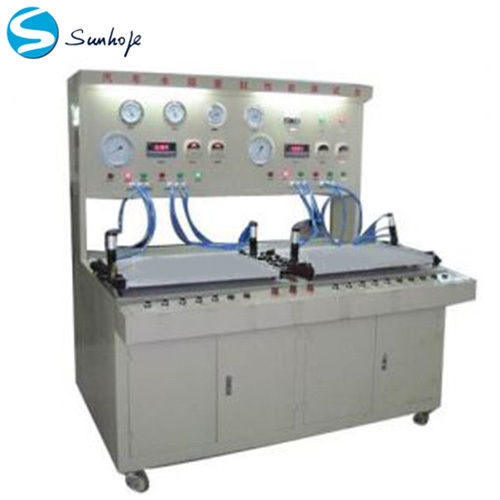

High Precision AC220V Differential Pressure Leak Tester
  • High Precision AC220V Differential Pressure Leak Tester
  • High Precision AC220V Differential Pressure Leak Tester
  • High Precision AC220V Differential Pressure Leak Tester

High Precision AC220V Differential Pressure Leak Tester

起源の場所 広東省、中国
ブランド名 Sunhope
製品の詳細
制御モード:
自動/マニュアル
ワーキングステーション:
1
力:
電子
テスト媒体:
ガス(水)
プレッシャー:
最大10MPa
電源:
0~380V
支払いと配送条件
最小注文数量
1セット
価格
交渉可能
パッケージの詳細
木製ケースと安全なパッキングマリール
受渡し時間
50days
支払条件
LC、T/T
供給の能力
100set/月
製品説明
High Precision AC220V Differential Pressure Leak Tester
Product Description

The High Precision AC220V 10MPa Radiator Leak Tester is a differential pressure leak detector engineered for online inspection. It operates by simultaneously pressurizing the test piece and a reference standard with clean, dry compressed air. After the air supply is sealed off, the instrument meticulously monitors for any pressure difference between the two. If the test piece has a leak, a measurable pressure difference occurs. By calculating and analyzing this differential pressure value, the tester accurately determines whether the item meets airtightness standards.

Advantages
  • High Precision Measurement: Utilizes a high-accuracy differential pressure sensor for exceptional measurement precision and reliable results.

  • Intelligent Operation: Features a fully automated intelligent system with a user-friendly 7-inch display for simple, intuitive control.

  • Data Management & Output: Includes a USB data export function and offers an optional printer for generating physical test reports.

Technical Parameters
ParameterSpecification
Test Pressure10MPa
Test Range±0.5Kpa, ±1Kpa, ±2Kpa
Pressure UnitsKpa, Mpa, PSI, bar
Leakage Value UnitsPa, Pa/s, mL/min
Differential Pressure Resolution1Pa
Power SupplyAC220V
Air Source RequirementClean, dry, stable compressed air
About SUNHOPE

For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.

Core Services & Capabilities
  1. Factory Setup Support: We assist international clients in establishing local radiator/condenser manufacturing plants, providing tailored solutions based on 15+ years of industry knowledge.
  2. Comprehensive Equipment Supply: We supply complete production lines (including CKD kits) and offer pre-sales & after-sales technical support. Our engineers provide on-site installation guidance.
  3. Full Component Supply: SUNHOPE is your single source for all essential radiator and condenser hardware and plastic components, guaranteeing supply chain reliability and finished product quality.
  4. Technical Expertise: As equipment users ourselves, we possess deep operational understanding, enabling us to quickly identify and resolve potential production issues.
High Precision AC220V Differential Pressure Leak Tester 0 High Precision AC220V Differential Pressure Leak Tester 1
Why Partner with SUNHOPE?
  • Extensive Mould Inventory: Over 200 proprietary head plate moulds covering most popular global vehicle models.
  • Equipment Expertise: 10+ years of hands-on radiator manufacturing experience allows us to recommend and source optimal machinery for your needs.
  • Superior After-Sales Support: Strong partnerships with equipment providers ensure prompt and effective service. Our user perspective enables faster, more accurate problem-solving.
  • True One-Stop Solution: From factory design, equipment supply, and component sourcing to technical support - SUNHOPE delivers seamless integration for successful radiator production startup and operation.
