High strength Weldable 3003 Aluminium Sheet
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Material Grade | 3003, 3004, 3102, 3105 (EN AW-3003 / ASTM A93003) | Aluminum Content | ≥90%(Per ISO 209-1 chemical composition) |
|---|---|---|---|
| Thickness Range | 0.20–8.00 mm (±0.05 mm tolerance) | Temper States | H24 (Half-hard) / T6 (Peak-aged) |
| Tensile Strength | H24: 145-195 MPa T6: 220-280 MPa (ASTM B209) | Thickness | 0.20 mm – 8.00 mm |
| ハイライト | 3003 aluminium radiator sheet,H24 T6 aluminium sheet,0.2-8.0mm aluminium radiator sheet |
||
製品の説明

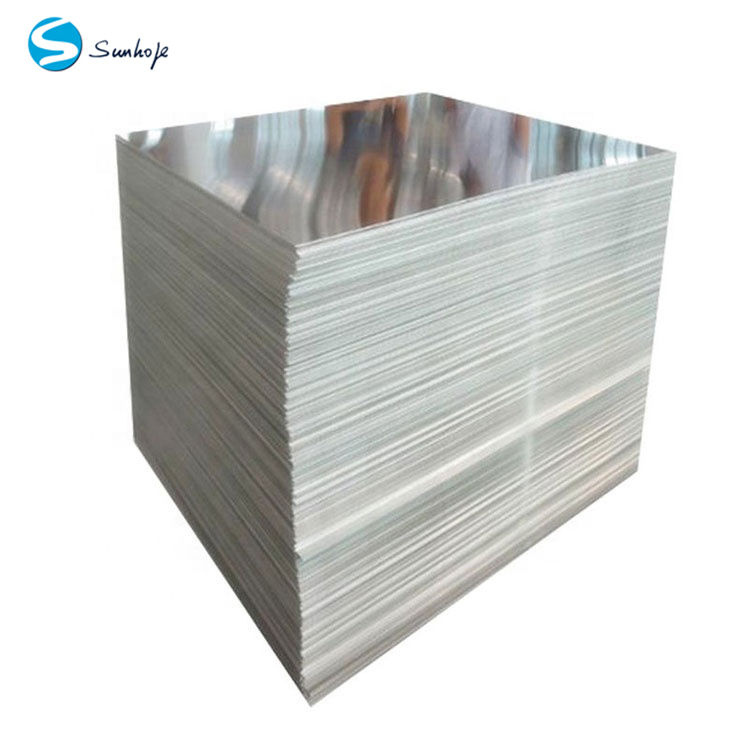

High strength Weldable 3003 Aluminium Sheet
Product Specifications
| Attribute | Value |
|---|---|
| Material Grade | 3003, 3004, 3102, 3105 (EN AW-3003 / ASTM A93003) |
| Aluminum Content | ≥90%(Per ISO 209-1 chemical composition) |
| Thickness Range | 0.20–8.00 mm (±0.05 mm tolerance) |
| Temper States | H24 (Half-hard) / T6 (Peak-aged) |
| Tensile Strength | H24: 145-195 MPa T6: 220-280 MPa (ASTM B209) |
Product Advantages
- High Strength & Hardness
- Excellent Corrosion Resistance (Resists fading)
- Good Fire Resistance
- Superior Weldability
- Excellent Cold Workability
Key Specifications
| Feature | Specification |
|---|---|
| Alloy Series | 3000 Series (3003, 3004, 3102, 3105) |
| Thickness | 0.20 mm - 8.00 mm |
| Width | Up to 2400 mm |
| Coil ID | 75mm, 150mm, 200mm, 300mm, 400mm, 508mm (Customizable) |
| Coil Weight | 1000 kg - 5000 kg |
| Coil OD | Max. 1700 mm |
| Temper | O, H12, H14, H16, H111, H22, H24, H26, H28, T4, T6, etc. |
| Surface | Vertical Bright, Transition Matte, Two-Way Bright |
| Thermal Conductivity | 0.035 W/(m*K) |
| Operating Temp | Up to 200°C |
Applications
- Aircraft fuel tanks & fuel pipes
- Vehicle & ship body panels
- Instruments & hardware products
- Electrical enclosures
- Radiator fins
- Street lamp brackets & rivets
Product Features
- High-Quality Alloy
- Traditional Design Style
- Excellent Weldability & Formability
- Moderate Strength
